- Adjust shooting settings remotely using the touchscreen display and preview shooting results via real-time image transmission.
- Utilize different GNSS systems for enhanced data quality and accuracy (GPS, BeiDou, Galileo, and GLONASS).
- Overlay accurate dashboard data onto videos in the Insta360 App or Insta360 Studio.
- Remote control distance up to 20m, with a preview distance of up to 8m.
- Two adjustable straps for full flexibility.
- For the best experience, ensure timely updates to the latest official firmware.
- Compatible with Insta360 Ace/Ace Pro models.
Insta360 GPS Map Remote Controller
- Supports map preview and remote control, putting control at your fingertips.
- Collects speed, route, and location information to add dashboard-like visuals to videos via the Insta360 App or Studio.
- Real-time map preview allows for easy adjustment of shooting positions for more accurate framing.
- Map transmission distance can reach up to 8m, while remote control distance can extend up to 20m.

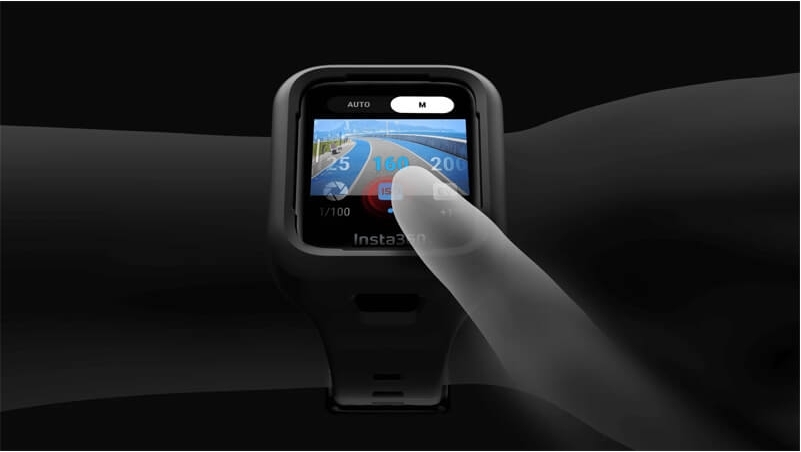

- Equipped with a touchscreen display for easy camera settings adjustment and one-touch camera activation.
- Built-in multi-GNSS (GPS/BD/Galileo/GLONASS) satellite positioning module accurately records location, routes, and speed.
- Enhanced battery life ensures continuous power supply for creative endeavors.
Maximum map transmission time: 6 hours
Maximum standby time: 60 hours
* With map transmission on, wrist lift display off, and screen always on, the battery can last up to 6 hours. When connected to the camera with the screen off, the battery can last up to 60 hours.
Includes wristband and strap for full flexibility. Wear it on your wrist using the wristband or mount it on handlebars, selfie sticks, and more using the universal strap.

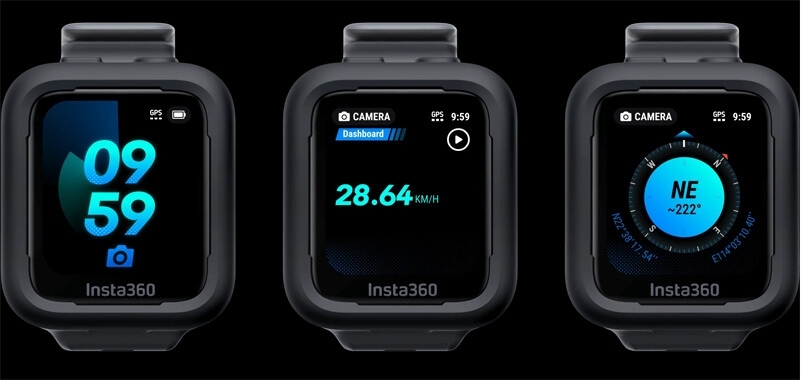

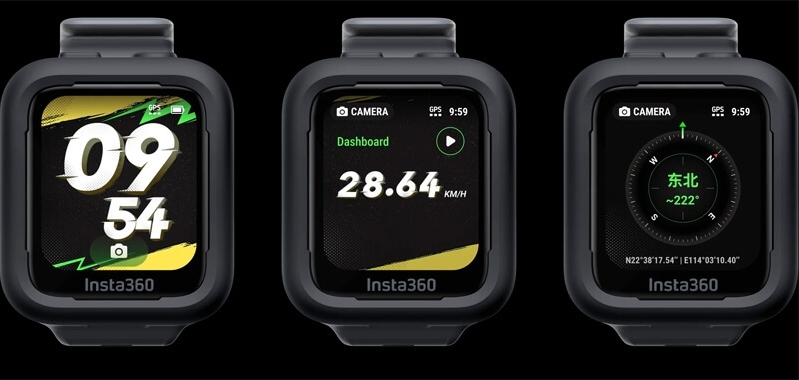

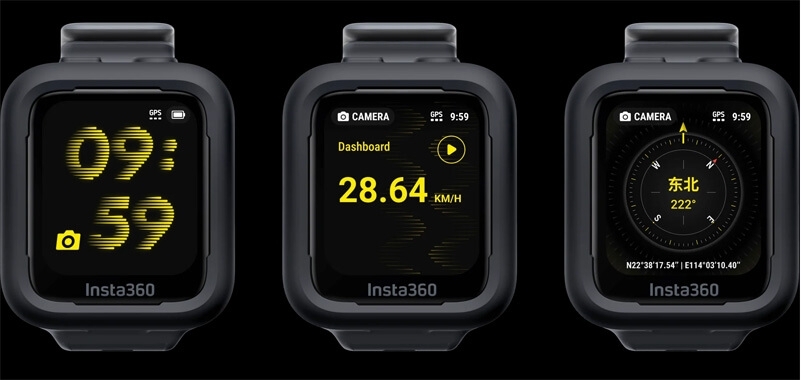

Comes with three dial designs for added style.
Firmware Upgrade:
To avoid compatibility issues between the remote controller and compatible camera firmware versions, connect the remote controller to the Insta360 App after updating the camera firmware to check for firmware updates and perform the corresponding upgrades.
Firmware Update Instructions:
1. Open the Insta360 App and go to "Settings" > "Update GPS Remote Controller."
2. Enable Bluetooth and connect to the "Insta360 GPS Preview Remote" device when your phone detects it.
3. If a firmware upgrade is available, proceed with the update.
4. The App will automatically download the new firmware and transfer it to the remote controller. Ensure that your phone screen stays on and the App remains open during this process.
5. Once the transfer is complete, the remote controller will automatically restart and begin the update process. You can monitor the update progress on the remote controller screen. Once completed, the remote controller is ready for normal use.
Notes:
1. This product contains magnets. Keep it away from devices susceptible to interference, such as pacemakers.
2. Use this product within the temperature range of -20°C to 40°C.
3. If the product is not used for an extended period (e.g., two months or longer), the battery may be depleted. Charge and power on the product in a timely manner.
4. Avoid dropping, disassembling, squeezing, inserting foreign objects, or placing heavy objects on the remote controller to prevent damage.
5. Avoid placing the product in direct sunlight (e.g., windowsills or car dashboards) or near heat sources (e.g., fireplaces or heaters).
6. If the product comes into contact with water, dry it promptly. Do not wear it during activities such as swimming, diving, or snorkeling.
7. Do not use any cleaning agents on the product. Do not use liquid cleaners to wipe the charging contacts on the remote controller, as this may cause corrosion and rust, affecting its performance. Clean the product with a soft dry cloth.
8. While the remote controller has a certain degree of waterproofing, it is not designed for underwater use. Do not use it underwater. When using it for water sports, affix a dry disposable double-sided adhesive sticker to the back of the remote controller and attach it to the wristband or universal strap for added security.
Technical Specifications:
Wristband diameter: 14-21 cm
Universal strap diameter: 2-3.5 cm
Operating environment: -20°C to 40°C (-4°F to 104°F)
Charging environment: 0°C to 40°C (32°F to 104°F)
Waterproof rating: IP68 (maximum depth of 1.5m, up to half an hour)
Battery: 950mAh
Bluetooth: Bluetooth 5.0
Operating frequency: 2402-2480 MHz
Output power (E.I.R.P.): < 10 dBm
Package Contents:
Remote controller x1
Wristband x1
Universal strap x1
Charging cable x1
Disposable double-sided adhesive stickers x4
Compatible Products:
Insta360 Ace Pro
Insta360 Ace
