》Instructions

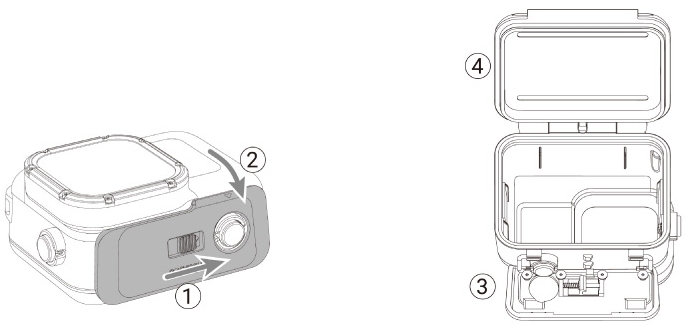

Open the diving case:
Unlock and open the diving case according to the steps shown in the diagram.

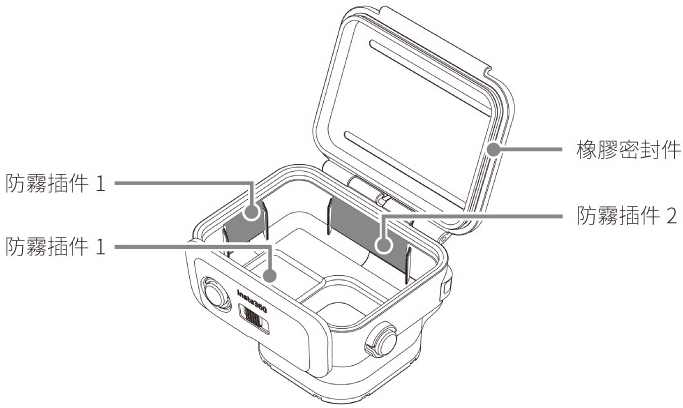

Install the anti-fog sheets:
Correctly place the anti-fog sheets (anti-fog plugs) inside the diving case as shown in the diagram.
* If using third-party anti-fog sheets, ensure that the dimensions of anti-fog sheet 1 are within 20 x 15 x 1.2 mm, and anti-fog sheet 2 are within 40 x 15 x 1.2 mm. Using oversized anti-fog sheets may cause leakage and damage to the camera.

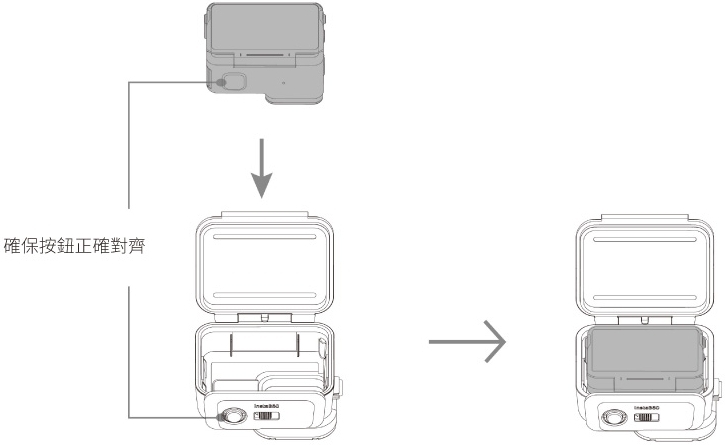

Insert the camera:
Ensure correct orientation to align the lens and buttons with the corresponding positions on the diving case.
Be careful not to scratch the lens when inserting the camera.
When using the camera underwater, lock the touchscreen to prevent accidental touches.

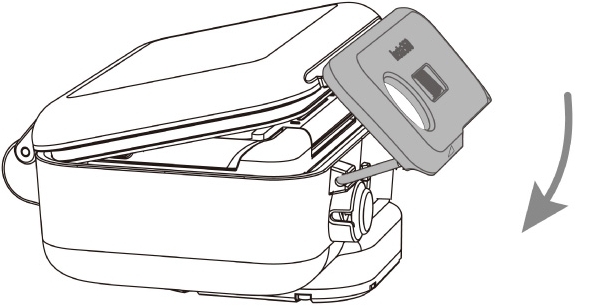

Close the diving case:
To close the diving case, hook the upper cover onto the edge of the diving case and then press down until the buckle locks (you will hear a click).
* To ensure a tight seal of the diving case, make sure there are no foreign objects or dust on the contact area between the diving case and the rubber seal.
* For optimal shooting results, ensure the lens of the diving case is clean.

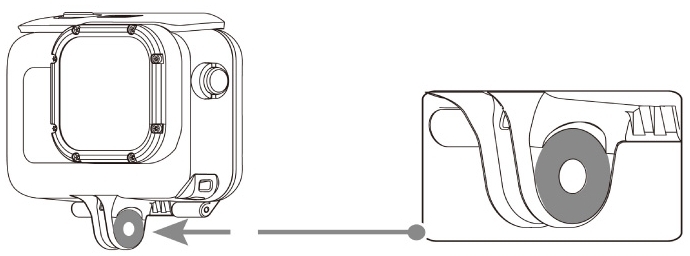

Install the anti-slip ring (if necessary):
When using the diving case with other accessories (such as a handheld buoyancy rod), you can attach the anti-slip ring around the screw hole to reduce the risk of vibration loosening or damaging the diving case.
》Notes
1. Before using the diving case, update the camera firmware to the latest version.
2. Improper maintenance may affect product performance. Before each use, it is recommended to lock the diving case (without inserting the camera) and immerse it in water to check for leaks.
3. Before sealing the diving case, ensure there are no foreign objects (dirt, dust, sand, etc.) on the contact area between the diving case and its rubber seal. Ensure the rubber seal is correctly aligned, not damaged, or distorted.
4. The diving case is not impact-resistant. Applying strong vibrations, shocks, or pressure to the product may cause damage, malfunction, or a decrease in waterproof performance. The maximum diving depth recommended when submerged is 2 meters above the water surface. When the camera falls onto a solid surface, the diving case can protect the camera, with a maximum drop distance of 1 meter.
5. Do not open the diving case in damp conditions.
6. After using the product in seawater, remove the camera and ensure the diving case is securely closed. Soak the diving case in fresh water for 5-10 minutes, then rinse gently under the tap.
7. Do not store the diving case in hot and humid environments, such as inside a hot car. Do not use soap, neutral detergents, organic solvents, or alcohol-based cleaning products to clean the diving case, as this may reduce waterproof performance.
》Specifications
Weight: 118 g
》Package Contents
Diving case x 1
Carrying pouch x 1
Anti-fog sheets (anti-fog plugs) x 8
Anti-slip rings x 4
》Compatible Products
Insta360 Ace Pro
