Capture the ultimate first-person perspective, capturing stunning action shots.
Can be securely attached to most full-face helmets (safety helmets).
Easy to install and remove.
Dual-panel angle adjustment, suitable for a variety of helmets (safety helmets), providing a precise fit.
Weighs only 75.3 grams, lightweight and comfortable to wear, without any pressure.
High-adhesive magic tape, with anti-slip pads, securely fastens the helmet chin mount to the helmet.
Usage Instructions:

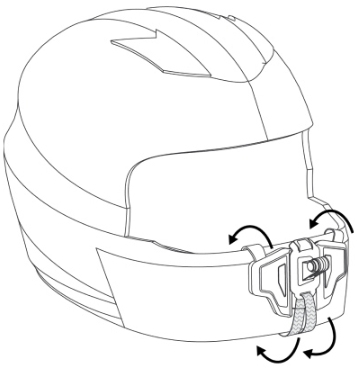

1. Attach the helmet bracket to the chin position of the helmet as shown in the diagram.

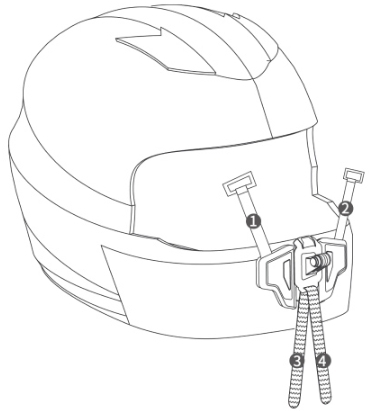

Outer Side:
1. Strap 1
2. Strap 2
3. Magic tape 1
4. Magic tape 2
Wavy lines represent the magic tape adhesive surface.

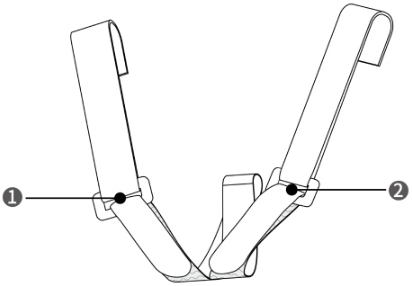

2. Secure the helmet bracket on the inside of the helmet.
1. Strap 1 is connected to Magic tape 1.
2. Strap 2 is connected to Magic tape 2.
Inner Side
3. Once the straps are secured, insert the camera into the connector of the helmet bracket as shown.
1. Sports camera
2. Connection seat
4. Secure the camera onto the helmet bracket using the screw locking rod, as shown in the diagram.
1. Screw locking rod
2. Same-direction extension joint. Users can choose whether to use the optional same-direction extension joint based on the shape and size of their helmet and camera.
*Notes:
1. This product is only suitable for full-face helmets and not for half-face or 3/4-face helmets.
2. Applicable Range: Suitable for scenarios such as motorcycle riding where helmets are used. Not suitable for use in high-speed aerial sports scenes such as parachuting, skydiving, or winged flight.
3. Before installation, check whether all components are normal and without damage.
4. Ensure that the magic tape is fully attached to prevent the accessory from falling off due to incomplete adhesion.
5. When not in use, store in a cool and ventilated place.
Package Contents:
Helmet Bracket x 1
Screw Locking Rod x 2
Same-direction Extension Joint x 1
User Manual x 1
Product Parameters:
Weight: 75.3 grams
Dimensions: 133.6 x 77.8 x 40.0 mm
Materials: High-strength nylon, silicone, stainless steel
Compatible Models:
ONE X2
X3
Ace Pro
Ace
ONE R
Insta360 ONE RS
*This product is not compatible with the One RS one-inch panoramic version.
